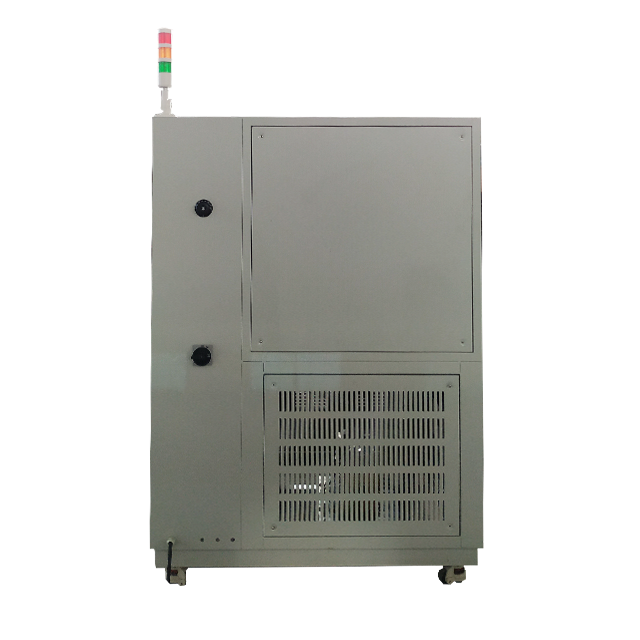

Vacuum drying test chamber

WhatsApp/Wechat

Get Quote

Model: TZS-100D TZS-150D TZS-250D TZS-500D
TZS-010D can be customized

Home Page_black garlic fermenter_wxharris ꄲ Environmental Test Equipment ꄲ Black Garlic Fermentation Box ꄲ Vacuum drying test chamber

vacuum test chamber
Specifications and models	TZS-100D	TZS-150D	TZS-250D	TZS-500D	TZS-010D
Studio Size (cm)	50x40x50	50x50x60	60x60x70	80x70x90	100 x100x100
temperature range	A: RT 10℃~150℃ B: RT 10℃~200℃ C: RT 10℃~250℃ D: RT 10℃~300℃
vacuum degree	1x 10-6~100Pa
fluctuation degree	± 1.0 ℃
heating rate	1.0℃~3.0℃/min
heating time	RT℃~300℃≤50min
working noise	≤62 dB(A)
Sample rack load bearing	≤ 20kg
power	~ 5.75KW	~ 6.85KW	~ 7.95KW	~ 8.85KW	~ 13.2KW
pumping rate	2-4L	3-8L	5-15L	8-15L	15-24L
material	liner:# SUS 304 stainless steel		outer box: cold plate spray/#SUS304
Wind circulation mode	Centrifugal impeller forced drive ℃
heater	316L seamless stainless steel heater/ceramic plate heater
cooling method	natural air radiation
control instrument	YUNDIAN-AI718 or HLS450
standard fittings	1 Sample rack 3 Resettable Fuse 1 power supply cable 3 m 1 Vacuum pump
safety device	Phase sequence/phase loss protection Mechanical over-temperature protection electronic over-temperature protection Overcurrent protection device Full protection type power switch

The vacuum test box is also called the vacuum drying test box. It has the same vacuum and heating functions as the ordinary vacuum drying box, but the difference is that the vacuum test box takes the vacuum as the main purpose, and the vacuum degree can reach 1x10-Pa6, while the vacuum drying box only carries out oxidation-free drying under vacuum environment.
