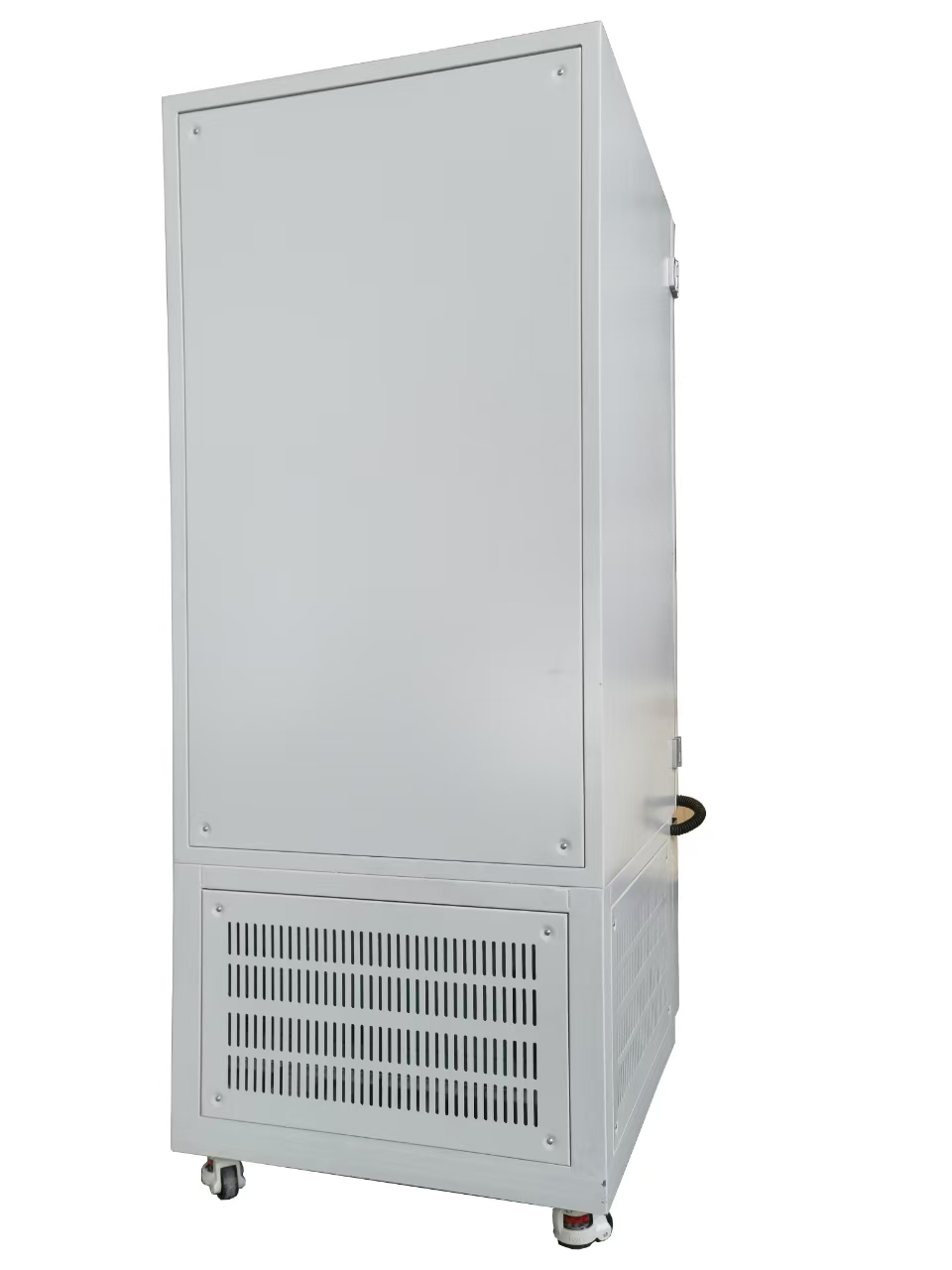

Constant temperature and humidity storage box
Specifications and models	TCF-100DB	TCF-150DB	TCF-250DB		TCF-500DB	TCF-010DB
Studio Size (cm)	50x40x50	50x50x60	60x60x70		80x70x90	100 x100x100
Temperature Range	A: RT+5℃~60℃ B: 0℃~60℃
fluctuation degree	± 1.0 ℃
humidity range	40%~60%RH(30%~80%RH)
humidity deviation	5%
cooling time	RT℃~0℃≤60min
working noise	≤65 dB(A)
Studio load-bearing	≤ 50kg/m2
power	~ 1.55KW	~ 1.95KW	~ 2.65KW		~ 3.5KW	~ 4.25KW
Materials	liner:# SUS 304 stainless steel			shell: cold plate spray/#SUS304 stainless steel wire drawing
Wind circulation mode	Centrifugal impeller forced drive
refrigeration mode	single stage refrigeration
Compressor	French "Taikang"/American "Copeland"
Refrigerant	R22/R4O7C DuPont Environmental Refrigerant
cooling method	air-cooled
heater	316L seamless stainless steel fin heater/nickel-chromium alloy heating wire heater
humidifier	External stainless steel boiler humidifier
water filling method	Automatic cycle replenishment mode
control instrument	TEMI880 or OYO-8256P or HLS950or E300
standard fittings	1 observation window (multi-layer hollow heat conduction anti-fog type) 1 50mm test hole 1 U-shaped energy-saving lamp 1 Sample rack 1 wet and dry ball gauze 3 Resettable Fuse 1 power supply cable 3 m.
safety device	compressor overload protection Phase sequence/phase loss protection humidifier protection against dry burning Mechanical over-temperature insulation Water tank water shortage protection

Used to store products that have certain requirements for environmental temperature and humidity. Due to the long storage time, there is no need to consider factors such as the rate of temperature rise and fall, so compared with the ordinary constant temperature and humidity test box, the function of the air duct and refrigeration system of the storage box does not need too high requirements, and the equipment cost also decreases accordingly.
