Cryogenic liquid nitrogen test chamber

WhatsApp/Wechat

Get Quote

model：TYDW-100TA TYDW-150TA TYDW-250TA
TYDW-500TA TYDW-010TA 可定制

Home Page_black garlic fermenter_wxharris ꄲ Environmental Test Equipment ꄲ Low-Temperature Liquid Nitrogen Test ꄲ Cryogenic liquid nitrogen test chamber

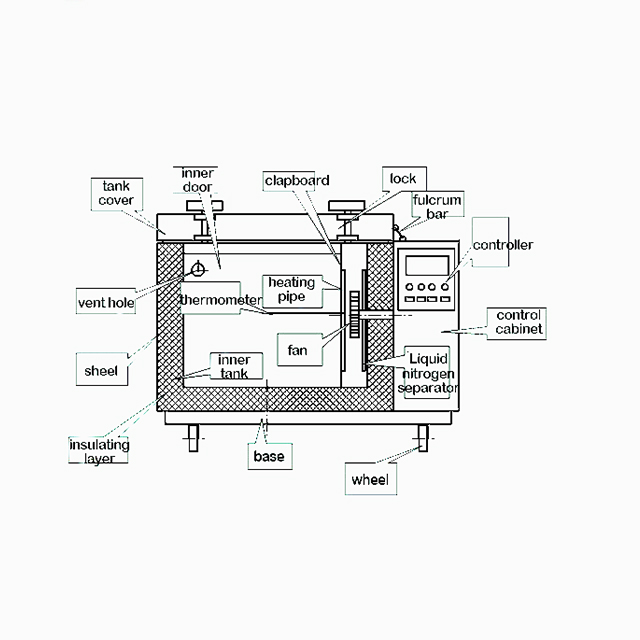

Liquid nitrogen cryogenic test chamber
Device model	TYDW-100TA	TYDW-150TA	TYDW-250TA	TYDW-500TA	TYDW-010TA
Studio Size (cm)	50x40x50	50x50x60	60x60x70	80x70x90	100x100x100
Temperature range	A: -80°C~0°C B: -120°C-~0°C C: -170°C~0°C
Control volatility	±1.0°C
Temperature control deviation	≤±2.0°C
Cooling rate	0.7°C~15.0°C/min
Cooling time	RT°C~-170°C≤30min
Working noise	≤65 dB（A）
Intraluminal pressure	≤0.5kg/cm2
Sample holder load-bearing	≤20kg
Total power	~1.95KW	~2.35KW	~2.85KW	~3.5KW	~4.35KW
material	Liner: # SUS 304 stainless steel		Outer box: cold plate spraying/#SUS304
Wind circulation mode	Fan forced circulation
Refrigeration method	Expansion and endothermic absorption
Refrigeration source	Cryogenic liquid nitrogen
heater	316L Seamless Stainless Steel Fin Heater/Nichrome Electric Heating Wire Heater
Control instrumentation	TEMI880 or OYO-8256P or HLS950or E300
Design criteria	GJB150.3 GJB150.4 GB/T2423.22 GB10589-89 GB11158-89
Standard accessories	1 Observation window (multi-layer hollow thermal conductivity and anti-fog type) 1 50mm test hole 1 U-shaped energy-saving lamp 1 Sample Holder 3 Resettable fuse 1 Power supply cable 3 meters.
Safety device	Compressor overload protection Phase sequence/missing phase protection Mechanical over-temperature protection Electronic over-temperature protection Overcurrent protection device Fully protected power switch

It is mainly used in medical research, deep space exploration and other scientific research fields involving low-temperature environments; It is used to detect the properties and effects of materials in cryogenic and low-temperature environments.
