drying materials under negative pressure conditions. It is the use of vacuum pump for pumping wet, so that the working chamber to form a vacuum state, reduce the boiling point of water, speed up the drying speed.

Home Page_black garlic fermenter_wxharris ꄲ Environmental Test Equipment ꄲ Vacuum Dry Oven ꄲ Vacuum drying oven

Features: ★ Microprocessor controller with LCD display, more accurate and reliable.

★Polished stainless steel chamber,durable and easy to clean.

★ Tempered, bullet-proof double glass door ensure the safety of operator and clear observation of the chamber.

★ Door tightness can be adjusted,silicon sealing. To keep vacuum states in the chamber, can fill working chamber with inert gas (inflation pressure≦ 0.1 MPa).

★ Storage, heating, testing and drying can be performed in the environment without oxygen or in an inert atmosphere. It will not cause oxidation.

★ Equipped with leakage protection.

Options: 1. Programable temperature controller 2. Built-in Printer 3. RS485 Connector 4. Inert gas inlet valve 5. Small vacuum pump (6020, 6050) 6.Large vacuum pump (6090, 6210)

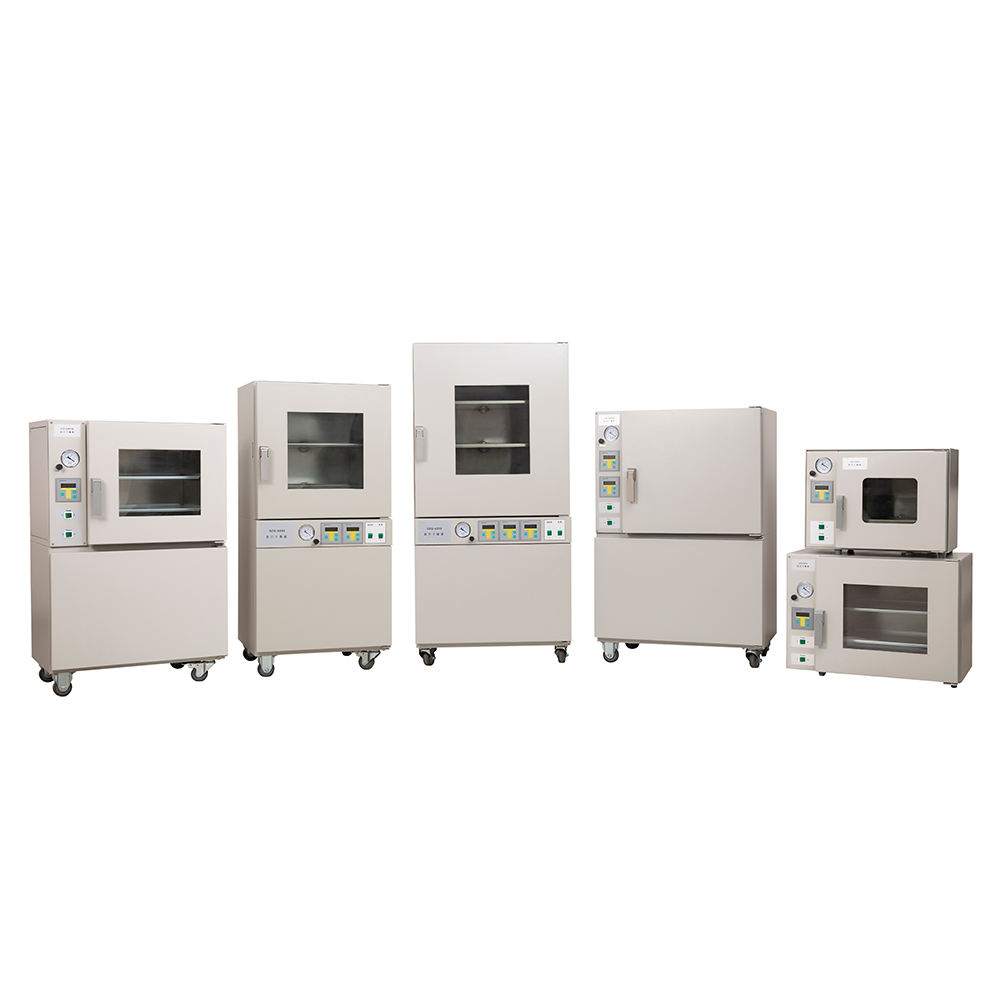

Vacuum drying oven
Specifications and models	TZG-100D	TZG-150D	TZG-250D		TZG-500D	TZG-010D
Studio Size (cm)	50x40x50	50x50x60	60x60x70		80x70x90	100 x100x100
temperature range	A: RT 10℃~150℃ B: RT -20℃~200℃ C: RT -40℃~250℃ D: RT -60℃~300℃
vacuum degree	10 ~ 8KPa
fluctuation degree	± 1.0 ℃
heating rate	1.0℃~3.0℃/min
heating time	RT℃~300℃≤50min
working noise	≤62 dB(A)
Sample rack load bearing	≤ 20kg
power	~ 3.75KW	~ 4.85KW	~ 5.95KW		~ 7.85KW	~ 11.2KW
pumping rate	1-4L	2-8L	3-15L		4-15L	8-24L
material	liner:# SUS 304 stainless steel			outer box: cold plate spray/#SUS304
Wind circulation mode	Centrifugal impeller forced drive ℃
heater	316L seamless stainless steel heater/ceramic plate heater
cooling method	natural air radiation
control instrument	YUNDIAN-AI718 or HLS450
standard fittings	1 Sample rack 3 Resettable Fuse 1 power supply cable 3 m 1 Vacuum pump
safety device	Phase sequence/phase loss protection Mechanical over-temperature protection electronic over-temperature protection Overcurrent protection device Full protection type power switch
