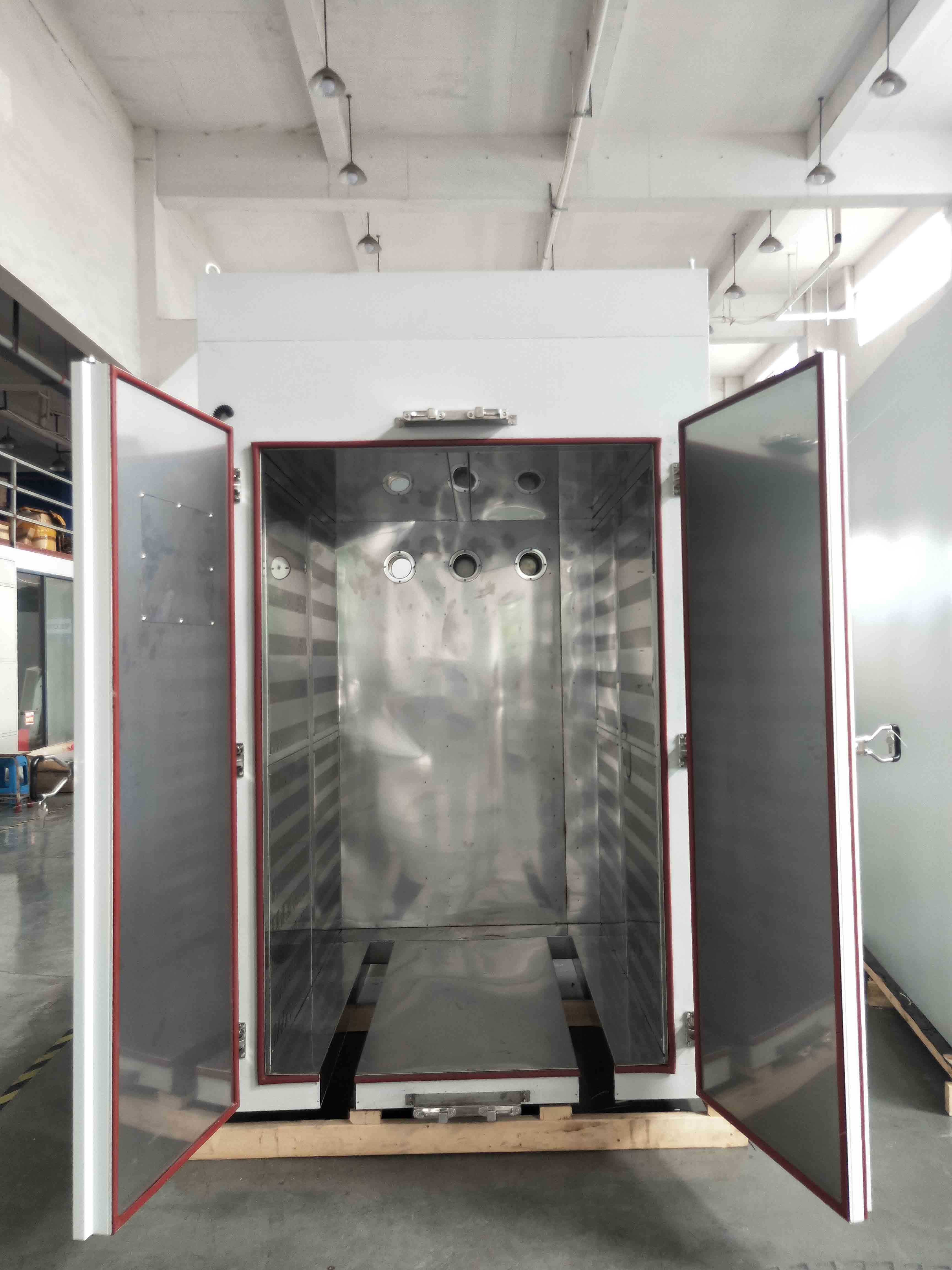

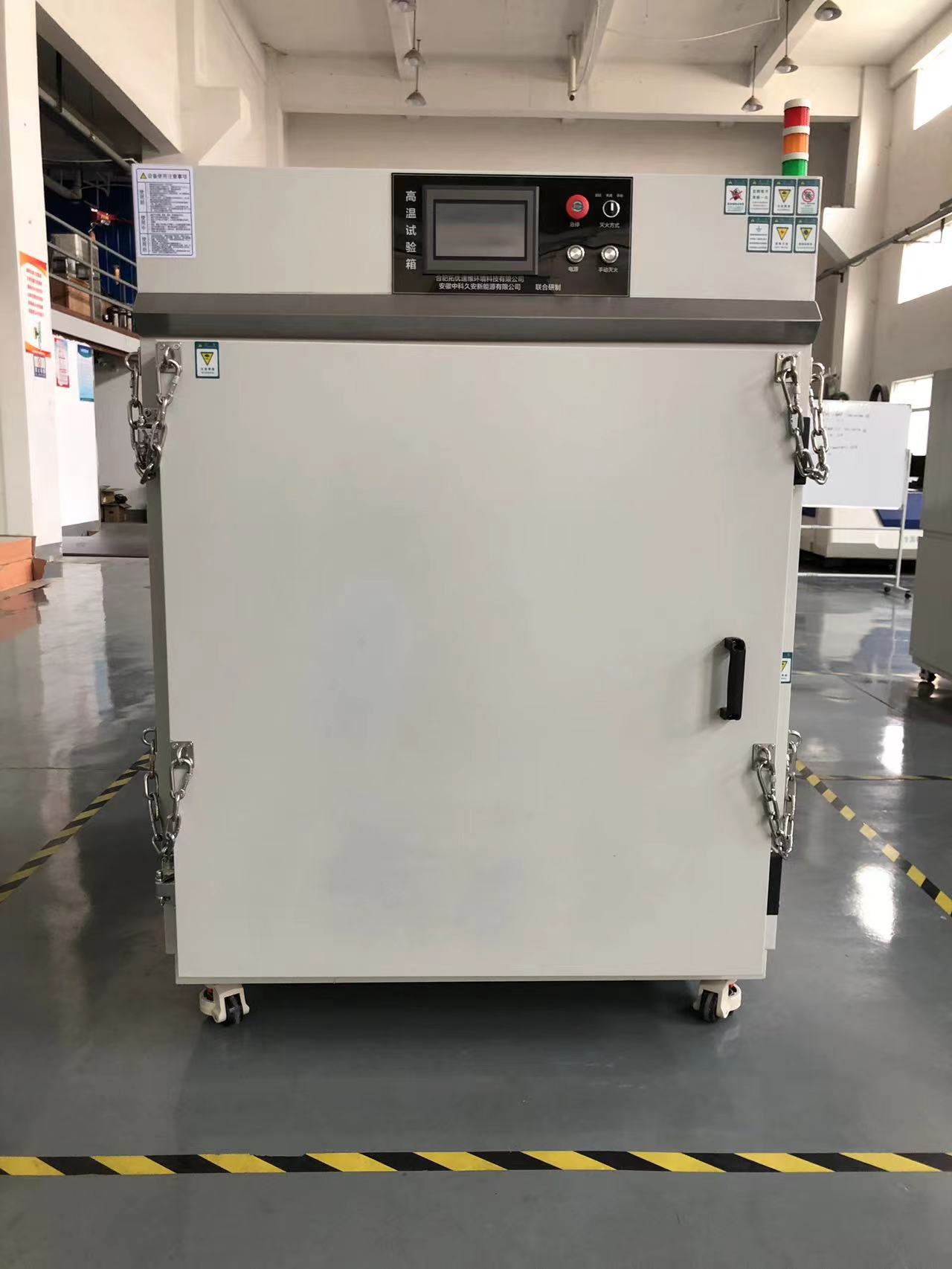

High temperature constant temperature test chamber
Specification model	TGHX-100D	TGHX-150D	TGHX-250D		TGHX-500D	TGHX-010D
Studio Size (cm)	50x40x50	50x50x60	60x60x70		80x70x90	100x100x100
Temperature range	A: RT+10°C~150°C B: RT+10°C~200°C C: RT+10°C~250°C D: RT+10°C~300°C
Fluctuation/uniformity	±0.5°C/±2%
Humidity range	1.0°C~3.0°C/min
Humidity deviation	RT°C~300°C≤50min
Rate of warming	≤62 dB(A)
Cooling rate	≤20kg
Heating time	～2.35KW	～2.85KW	~3.65KW		~4.85KW	~6.2KW
Cooling time	Liner: # SUS 304 stainless steel			Outer box: cold plate spraying/#SUS304
Wind circulation mode	Centrifugal impeller forced drive °C
heater	316L Seamless Stainless Steel Fin Heater/Nichrome Electric Heating Wire Heater
Cooling method	Air naturally convection
Control instrumentation	TEMI880 or OYO-8256P or HLS950or E300
Relevant standards	GJB150.3 GB/T2423.2 GB11158-89
Standard accessories	1 Observation window (use within 200°C) 1 50mm test hole 1 U-shaped energy-saving lamp 1 Sample Holder 3 Resettable fuse 1 Power supply cable 3 meters.
Safety device	Phase sequence/missing phase protection Mechanical over-temperature protection Electronic over-temperature protection Overcurrent protection device Fully protected power switch

This product is a necessary test equipment in aviation, automobiles, home appliances, scientific research and other fields, used to test and determine the parameters and performance of electricians, electronics and other products and materials after temperature environment changes in high temperature or constant testing
