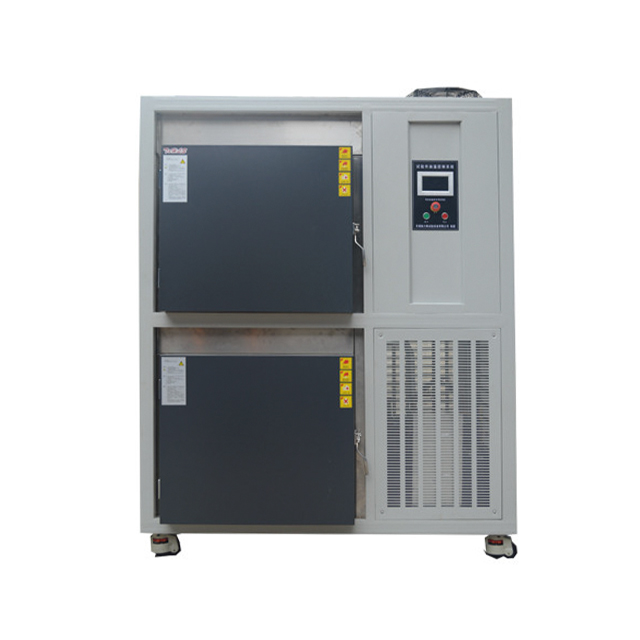

Two-zone Thermal Shock Test Chamber in large size

WhatsApp/Wechat

Get Quote

Product model：TGDCJ-150BA TGDCJ-250BA TGDCJ-300BA
TGDCJ-512BA TGDCJ-010BA 可定制

Home Page_black garlic fermenter_wxharris ꄲ Environmental Test Equipment ꄲ Thermal Shock Test Chamber ꄲ Two-zone Thermal Shock Test Chamber in large size

Two-box high and low temperature impact test chamber
Product model	TGDCJ-150BA	TGDCJ-250BA	TGDCJ-300BA	TGDCJ-512BA	TGDCJ-010BA
Studio Size (cm)	50x50x60	60x60x70	60x70x70	80x80x80	100x100x100
Hanging bar sample holder size	30x30x35	40x40x45	40x50x45	60x60x55	80x80x75
Temperature range	A: -20°C~150°C B: -40°C~150°C C: -60°C~150°C
Fluctuation/uniformity	±0.5℃/±2℃
Conversion time	10s
Recovery time	5min
Rate of warming	RT℃～200℃≤30min
Cooling rate	RT℃～-40℃≤50min
Cryogenic range	-80℃ ～ -10℃
High temperature chamber range	RT+10℃ ～ 200℃
Operating noise	≤72 dB（A）
Sample holder load-bearing	≤20kg
Running power	～22.5KW	～26.5KW	～28.5KW	～32.5KW	～38.5KW
material	Liner: # SUS 304 stainless steel			Outer box: cold plate spraying/#SUS304
compressor	France "Taikang" / American "Copel" / Germany "BITZER" / Germany "Blog"
Refrigerant	R4O4A DuPont Eco-friendly Refrigerant/R23
Cooling method	Water cooling/air cooling
heater	316L Seamless Stainless Steel Fin Heater/Nichrome Electric Heating Wire Heater
Control instrumentation	OYO-8226P or HLS980
Refrigeration method	Dual-stage refrigeration
Wind circulation mode	Centrifugal impeller forced drive
Box structure	Horizontal/vertical two-box type
Relevant standards	GJB150.5 temperature shock test GJB360.7 Temperature Shock Test GB/T2423.22 temperature change test GB10589-89 Low Temperature Test Chamber Technical Conditions GB11158-89 Technical conditions of high-temperature test chamber
Standard accessories	1 50mm test hole 1 U-shaped energy-saving lamp 1 Sample Holder 3 Resettable fuse 1 Power supply cable 3 meters.
Safety device	Compressor overload protection Phase sequence/missing phase protection Mechanical over-temperature protection Electronic over-temperature protection Overcurrent protection device Fully protected power switch

Necessary testing equipment for metal, plastic, rubber, electronics and other material industries, used to test the structure of materials or composite materials, can detect the chemical changes or physical damage caused by thermal expansion and contraction of test samples in a short period of time to the extent to which they can withstand extremely high and low temperatures in a continuous environment. The product meets the requirements of GB/T2423.1-2008 test A, GB/T2423.2-2008 test B, GB-T10592-2008, GJB150.3-198, GJB360A-96 method 107 temperature shock test.
